Features
- Components are made from food grade silicone rubber & polycarbonate; Autoclavable upto 136°C for 5 minutes at approx. 2 bars. Long lasting & resistant to aging, Non-Toxic & Non-Allergic. Maintains its elasticity between -100°C and +250°C. Can also be decontaminated by ETO sterilization or cold sterilization. Oxygen Reservoir Bag may be sterilized by cold sterilization only.
- Transparent polycarbonate nonrebreathing valves and dearhood facemasks facilitate visual monitoring, observation of lips and regurgitation.
- Nonrebreathing "L" valve is designed for low resistance with dead space reduced to 7ml, and allows 360° swivel for changing angle of operation without disturbing the mask/tracheal tube. Pressure relief device with lock & unlock system provided to prevent possible emphysema. The patient end has a standard 15mm/22mm (ID/OD) which connects to al standard masks & 15mm E/T Tube connectors.
- Can be used for long periods without operational fatigue
- Can be disassembled & reassembled in a matter of seconds. Designed for trouble free service. All spare parts are available when necessary as the resuscitators are made indigenously.
- Controlled & spontaneous ventilation possible. Also suitable to administer anaesthesia in conjunction with a draw over type vaporizer.
- Enrichment of oxygen upto 100% possible using Rao's Oxygen Reservoir attachment.

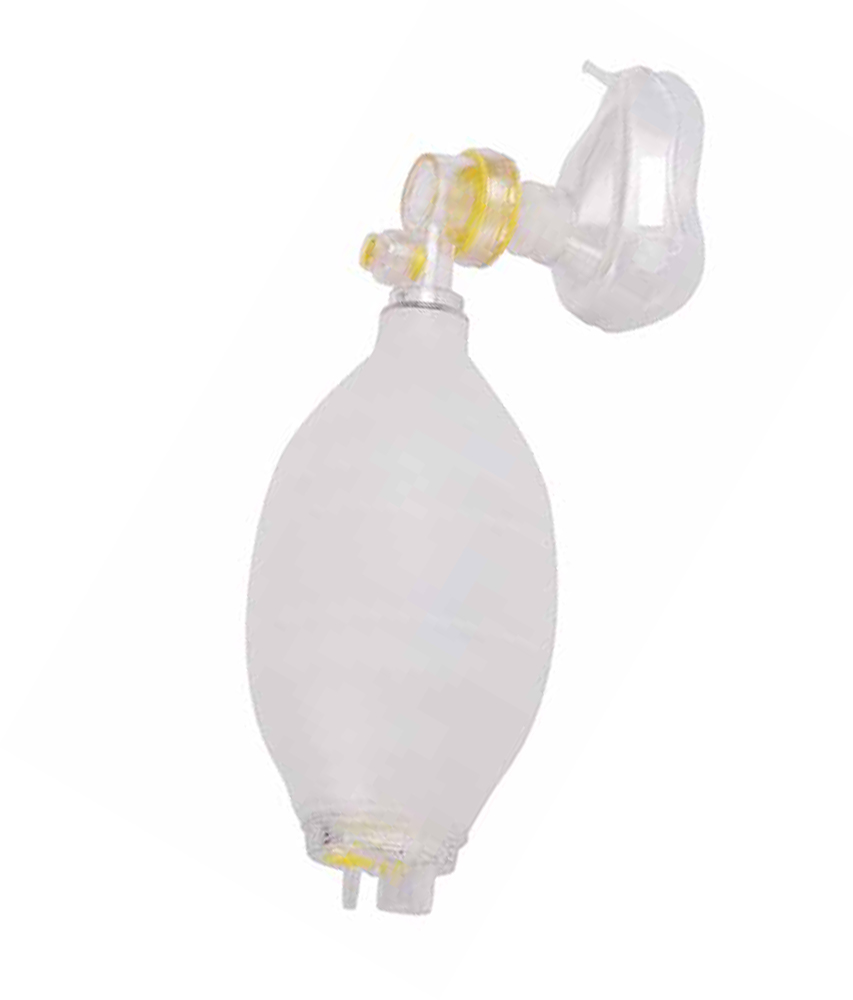

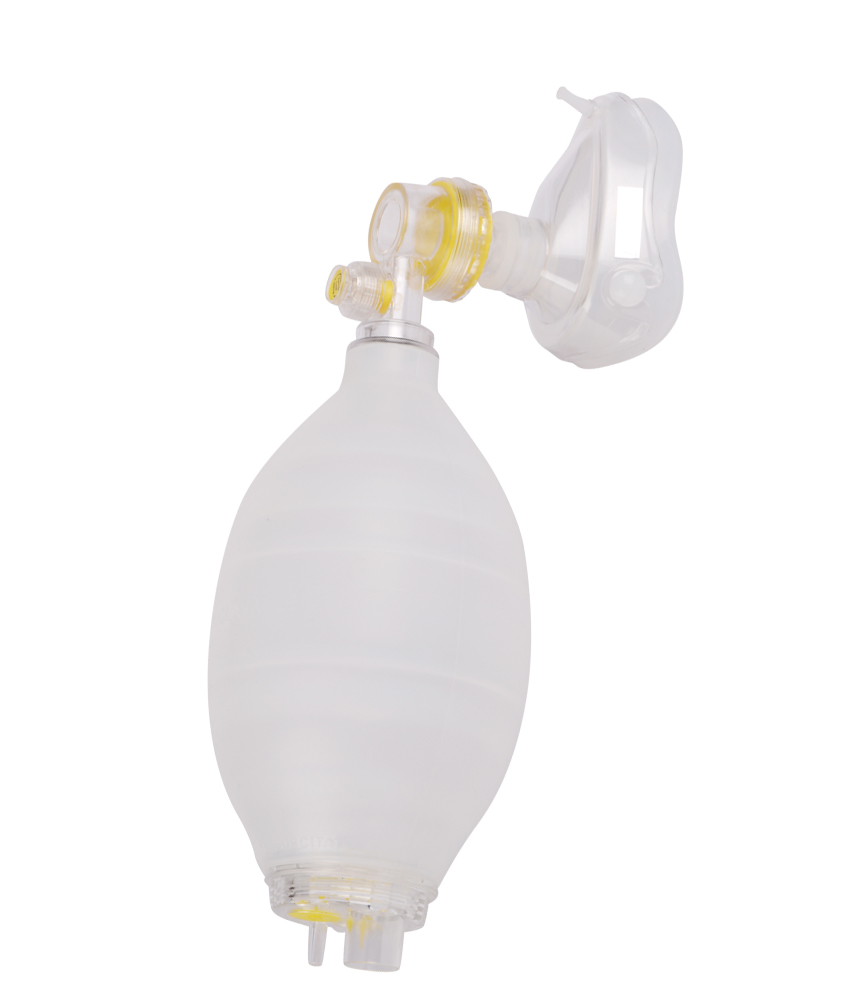

ADULT-5001
For patients above 30 Kgs.

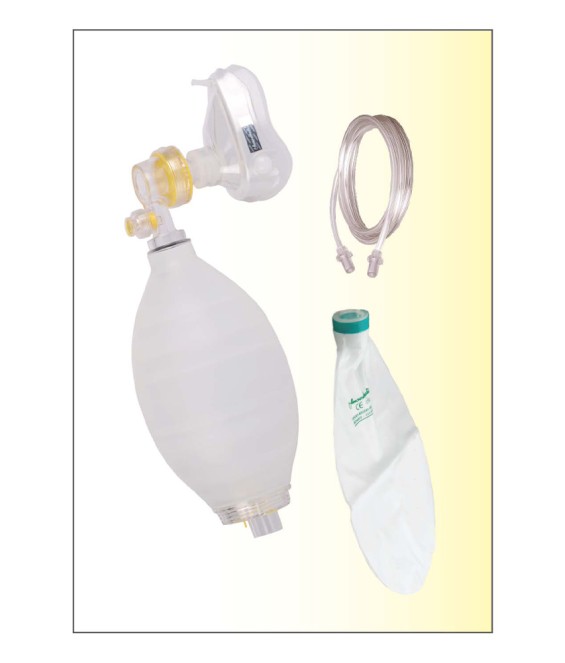

Set comprises:
1600ml. self inflating double ended silicone bag with mounts incorporating Reservoir valve and side feed. oxygen inlet, Type "L" nonnebreathing valve with pressure limiting device wherein it will open if the inspiratory pressure is more than 60cms of water (9282), Size 4 Clearhood facemask with silicone cuff (8052), 1.5mtrs oxygen enrichment tubing (5038) & 2600 ml Reservoir bag (5031) all in a carrying case.
